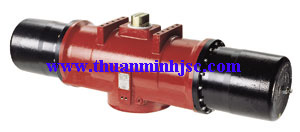

The rugged design of this RCI 100 series will result in a long service life. The iron/ aluminum body and modern scotch yoke design cobmines for DIN/ISO dimensional conformance. Double acting or spring return options, safe modular spring packs, and optional override are only some of the features available in this series of acutators.

FEATURES

• Rugged design for long service life
• Ductile iron/ aluminum body
• Modern scotch yoke design
• Double acting or spring return
• Safe modular spring packs
• DIN/ISO dimensiona conformance
• Optional manual override

OPTIONS

• Adjustable travel stops for double acting
• Declutchable manual override
• Positioners, limit switches, solenoid valves
• Hydraulic oil operation

TECHNICAL DATA

• Maximum working pressure – 150 PSI
• Operating medium air or inert gas
• Ambient temperature – 22 ̊ F to +175 ̊ F

RCI 100 double acting torque

40 PSIG AIR SUPPLY                                                          60 PSIG AIR SUPPLY

80 PSIG AIR SUPPLY                                                          100 PSIG AIR SUPPLY
